前言

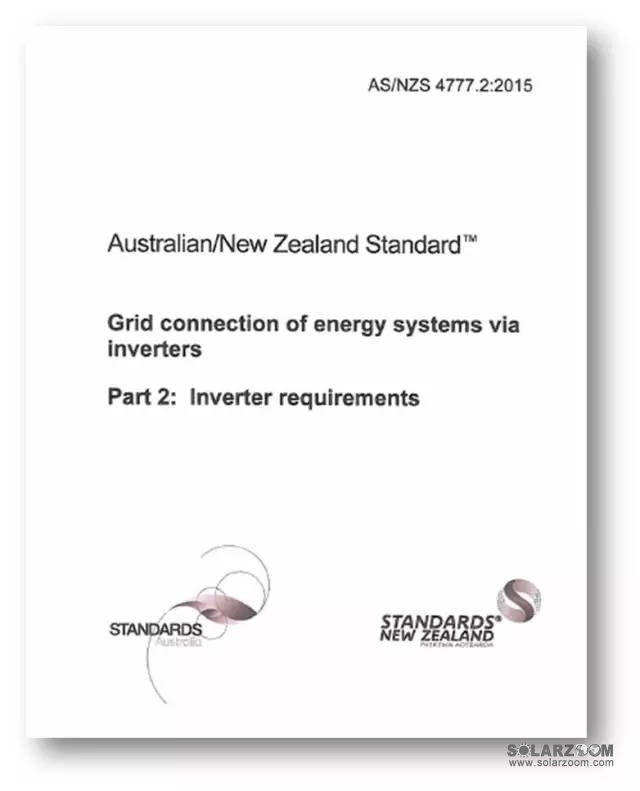

由澳大利亚标准局/新西兰标准局EL-042可再生能源电力系统及设备委员会编制的最新并网标准AS/NZS 4777.2: 2015，已于2015年10月9日正式颁布，替代原并网标准AS/NZS 4777.2&.3: 2005，针对光伏逆变器并网要求有大幅度更新。新标准的实行过渡期为1年，自2016年10月9日起，将强制实行。

1Scope 范围

Inverter connect to the LV network.

10kVA for single phase inverter, 30kVA for three phase inverter.

2Power Factory 功率因素

Cl 5.5: PF within the range 0.95lead to 0.95lag for 25% to 100% of rated current.

Cl 4.4: PF within the range 0.8lead to 0.95lag for 20% to 100% of rated output power.

3Harmonic currents 谐波电流

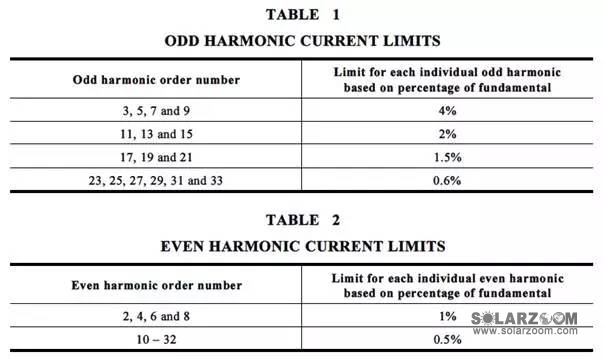

Cl 5.6:

Cl 4.5:

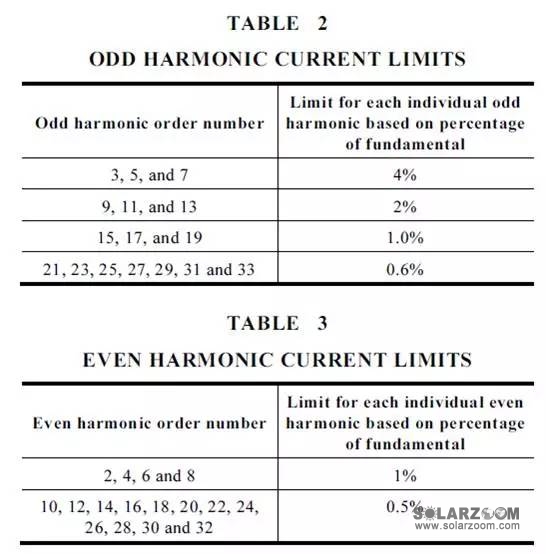

Comments: Odd harmonic current limits changed for order 9,15,17,19,21.

4Voltage Fluctuation & Flicker 电压闪变

Cl 5.7: AS/NZS 61000.3.3 and AS/NSZ 61000.3.11.

Cl 4.6: AS/NZS 61000.3.3 and AS/NSZ 61000.3.5.

5DC Current Injection 直流分量

Cl 5.9: not exceed 0.5% of rated current or 5mA for both grid tied or stand-alone inverter, whichever is greater.

Cl 4.9： not exceed 0.5% of rated current or 5mA, whichever is greater.

Comments: add the same requirement for stand-alone inverter.

6Active Anti-islanding Protection主动孤岛保护

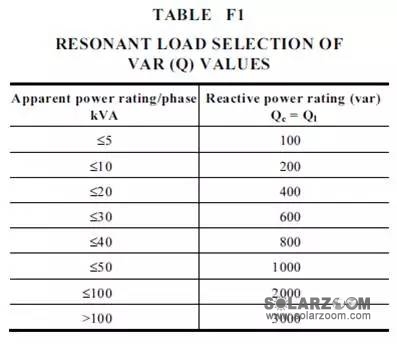

Cl 7.3: comply with IEC 62116 or appendix F.

Cl 5.5: comply with appendix B.4.

7Voltage & Frequency Limits电压和频率限制

Cl. 7.4:

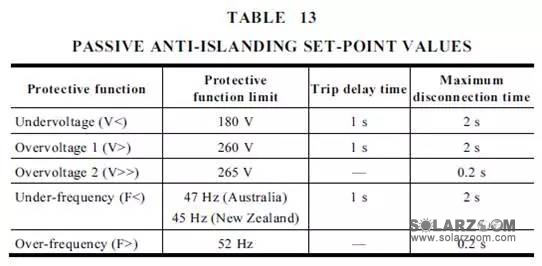

Cl. 5.3: UV/OV: 200V/270V, 2s; UF/OF: 45Hz/55Hz, 2s;

Comments: Over and Under trip value and trip time changed.

8PV array earth fault PV 侧接地故障检测

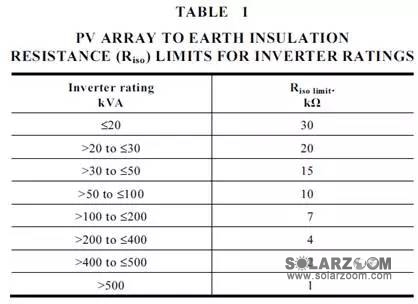

Cl. 5.3:

9Current Balance for Three-phase Inverters 三相电流不平衡度

Cl. 5.10: within 5% of rated current.

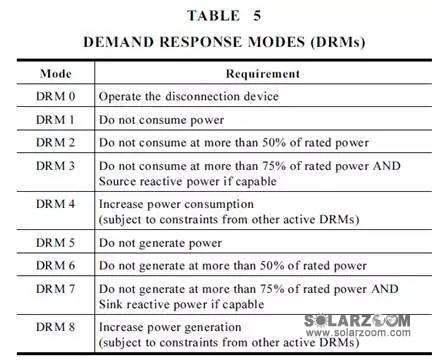

10Inverter Demand Response mode（DRM） 逆变器命令响应要求

Cl. 6.2.1:

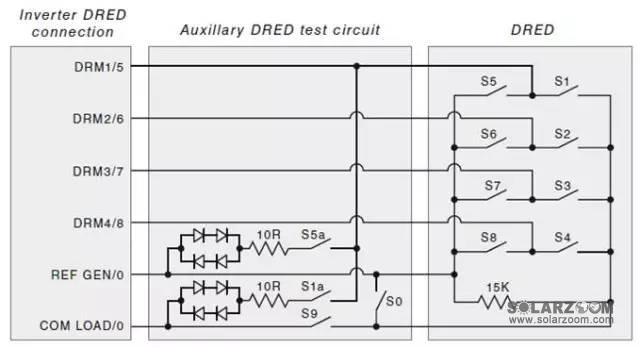

11Interaction with Demand Response Enabling Device（DRED） 命令响应装置

Cl. 6.2.2: The inverter shall have a terminal block or RJ45 for connecting to DRED. The pins of terminal block and RJ45 shall comply with this standard.

12Voltage Response Modes 电压响应模式

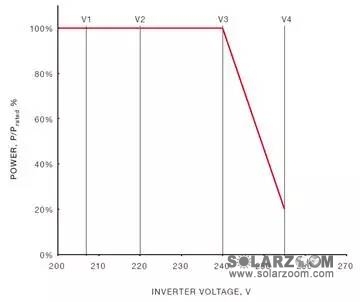

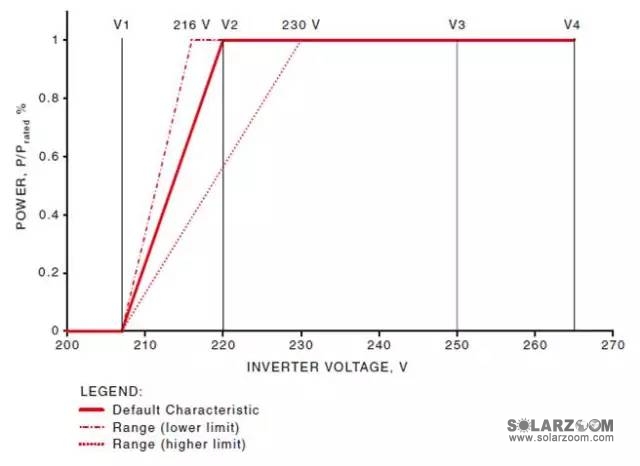

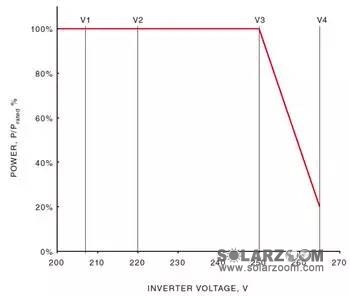

Cl. 6.3.2.2: P（U） curve, fig2（a） for AU, fig2（b） for NZ （default: enable）。

13Volt-var Response Mode 电压-无功响应模式

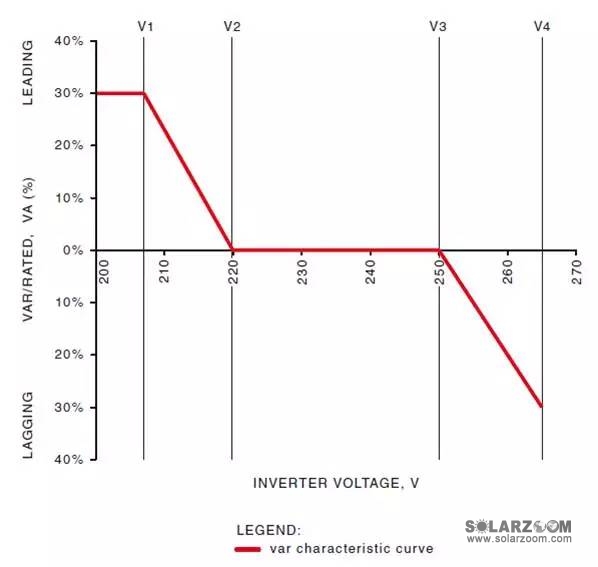

Cl. 6.3.2.3: Q（U） curve （default: disable）。

14Voltage Balance Mode 电压平衡模式

Cl. 6.3.2.4.

15Fixed Power Factor Mode & Reactive Power Mode 固定功率因数及无功模式

Cl. 6.3.3: min. power factor adjustable range:

0.8lead to 0.8lag; max. reactive power range:

-100%Sn to +100%Sn （default: disable）。

16Power Factor Curve for cosϕ（P）cosϕ（P） 的功率因数曲线

Cl. 6.3.4: cosϕ（P） curve, 0.9lead to 0.9lag （default: disable）。

17Gradient of Power Rate Limit 功率变化率限制

Cl. 6.3.5.2: Default value 16.67%Pn /min., adjustable range: 5% to 100%Pn/min.

18Sinusoidal Output in Stand-alone Mode 离网模式下交流正弦输出模式要求

Cl. 6.4.2: Voltage THD<5%.

19Volt-watt Response Mode for Charging of Energy Storage 储能系统充电模式下的电压-功率响应

Cl. 6.4.3: The charging is limited due to the voltage is low.

20Automatic Disconnection Device 并网保护装置

Cl. 7.2: Similar as VDE-AR-N4105/ IEC 62109-2.

21Sustained Operation for Voltage Variations 持续电压变化保护

Cl. 7.5.2: 10 min. average value: 255V in AU, 248 in NZ.

22Response to an Increase in Frequency 过频降载

Cl. 7.5.3.1: Similar as CEI 0-21.

23Response to a Decrease in Grid Frequency （for ESS only） 储能系统的欠频响应

Cl. 7.5.3.2: Charge power decrease during under frequqncy.

24Connection & Reconnection Prcedure 启动与重连

Cl. 7.7: Voltage according IEC 60038 （for NZ） and AS 60038 （for AU）； Frequency range: 47.5Hz~50.15Hz.

25Inverter Current Balance Across Multiple Phases 三相电流不平衡度

Cl. 8.2: Imbalance current not more than 21.7A.

26Multiple Inverter Combinations 多机并联

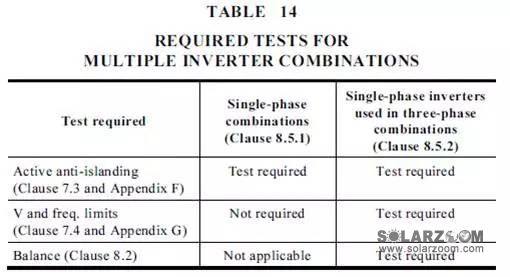

Cl. 8.5:

27Marking & Documents 铭牌与文件

Cl. 9: Similar as IEC 62109.

28Appendix I 附件I

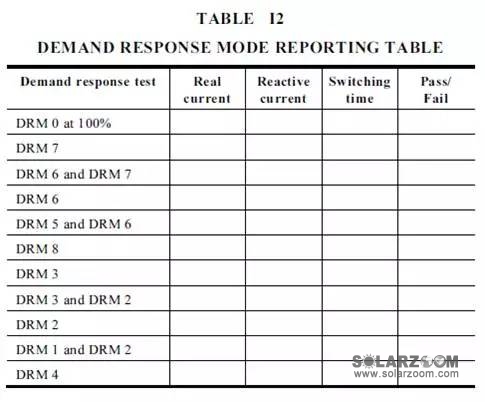

Demand and power qulity response mode testing.
